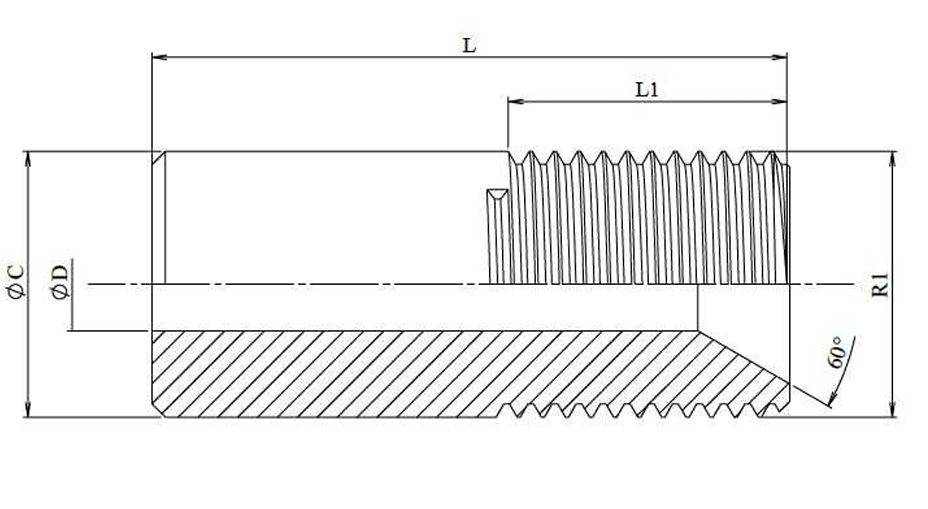

| Maat | R1 | L | L1 | ØC | ØD | |
|---|---|---|---|---|---|---|
| 1/8" | ⅛" BSPP | 24 | 11 | 10 | 3,5 | |
| 1/4" | ¼" BSPP | 25 | 12 | 13 | 6 | |
| 3/8" | ⅜" BSPP | 27 | 15 | 16,5 | 8 | |
| 1/2" | ½" BSPP | 35 | 17 | 21 | 12 | |
| 3/4" | ¾" BSPP | 41 | 20 | 26,5 | 15 | |
| 1" | 1" BSPP | 50 | 21 | 33 | 20 | |
| 1 1/4" | 1¼" BSPP | 52 | 24 | 42 | 30 | |
| 1 1/2" | 1½" BSPP | 57 | 26 | 48 | 37 | |
| 2" | 2" BSPP | 60 | 28 | 59,5 | 45 |
Productcatalogus

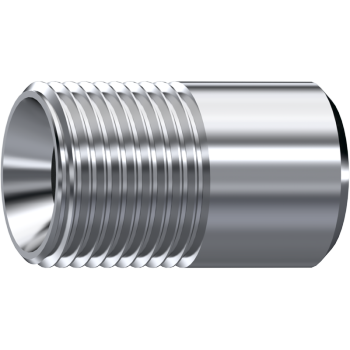

Lasfitting 60° BSPP mannelijk lasnippel
Toepassing
Voor algemene hoge druk toepassingen.
