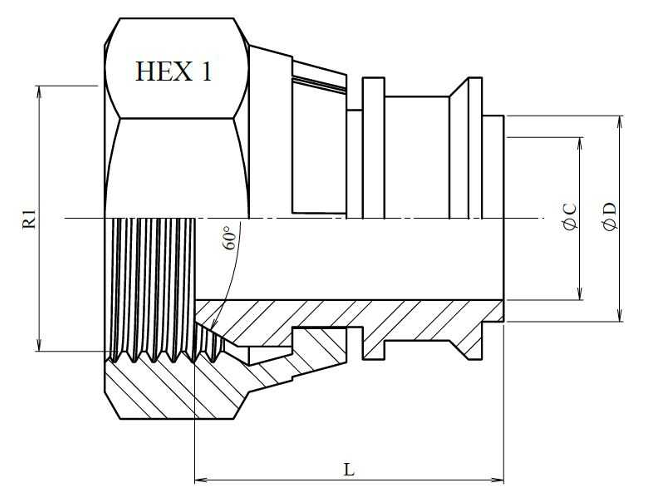

| Maat | R1 | L | HEX 1 | ØC | ØD | |
|---|---|---|---|---|---|---|
| 1/4" | ¼" BSPP | 23 | 19 | 5 | 5,8 | |
| 3/8" | ⅜" BSPP | 23,5 | 22 | 7 | 9,8 | |
| 1/2" | ½" BSPP | 26 | 27 | 9,5 | 12 | |
| 3/4" | ¾" BSPP | 28,5 | 32 | 15 | 19 | |
| 1" | 1" BSPP | 33,5 | 41 | 22 | 24,5 | |
| 1 1/4" | 1¼" BSPP | 38,5 | 50 | 26 | 31 | |
| 1 1/2" | 1½" BSPP | 39,5 | 55 | 32 | 39 | |
| 2" | 2" BSPP | 41 | 70 | 44 | 50 |
Productcatalogus

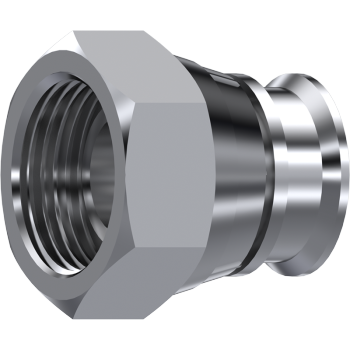

Lasfitting 60° BSPP vrouwelijk swivel met guide
Toepassing
Voor algemene hoge druk toepassingen.
