| Maat | R1 | L | L1 | HEX 1 | ØC | ØD | |
|---|---|---|---|---|---|---|---|
| 1/4" | ¼" BSPP | 30 | 24,5 | 19 | 4 | 8 | |
| 3/8" | ⅜" BSPP | 36 | 34,5 | 22 | 7 | 12 | |
| 1/2" | ½" BSPP | 46 | 43,5 | 27 | 9,5 | 14 | |
| 3/4" | ¾" BSPP | 58,5 | 57 | 32 | 15 | 20 | |
| 1" | 1" BSPP | 72,5 | 81,5 | 41 | 19 | 25 | |
| 1 1/4" | 1¼" BSPP | 82 | 99 | 50 | 26 | 30 | |
| 1 1/2" | 1½" BSPP | 99,5 | 117,5 | 55 | 33 | 38 | |
| 2" | 2" BSPP | 119 | 138,5 | 70 | 46 | 48,3 |
Productcatalogus

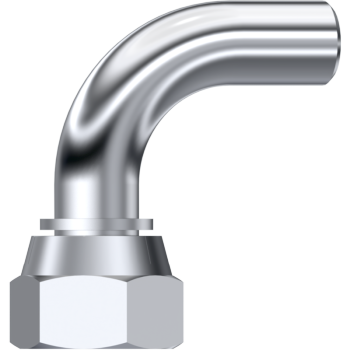

Lasfitting 90° bocht 60° BSPP vrouwelijk swivel
Toepassing
Voor algemene hoge druk toepassingen.
