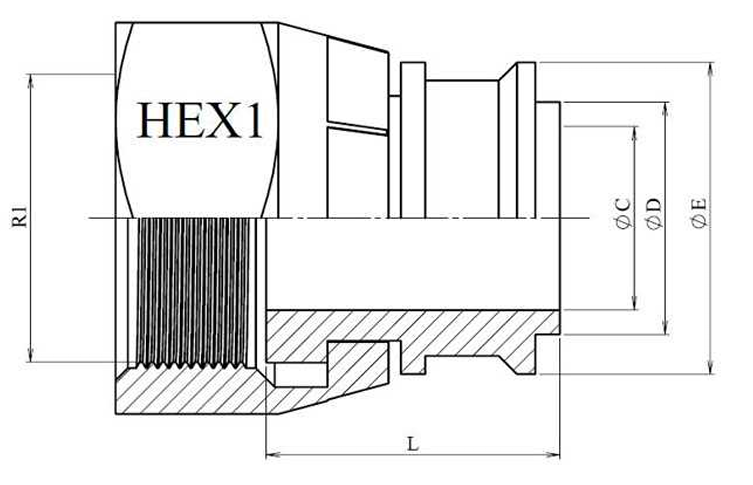

| Maat | R1 | L | HEX 1 | ØC | ØD | ØE | |
|---|---|---|---|---|---|---|---|
| 1/4" | ¼" BSPP | 19,5 | 19 | 6 | 7 | 12 | |
| 3/8" | ⅜" BSPP | 21 | 22 | 8 | 10 | 16 | |
| 1/2" | ½" BSPP | 22 | 27 | 9,5 | 12 | 20 | |
| 3/4" | ¾" BSPP | 24 | 32 | 15 | 19 | 25 | |
| 1" | 1" BSPP | 28 | 41 | 22 | 24,5 | 32 | |
| 1 1/4" | 1¼" BSPP | 32,5 | 50 | 26 | 31 | 40 | |
| 1 1/2" | 1½" BSPP | 33 | 55 | 32 | 39 | 46 | |
| 2" | 2" BSPP | 38 | 70 | 44 | 50 | 60 |
Productcatalogus

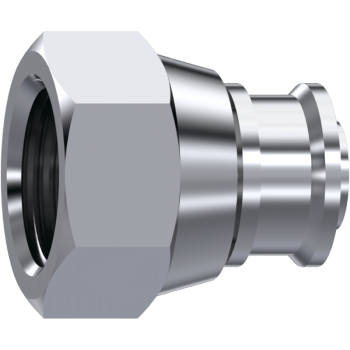

Lasfitting vlakdichtend BSPP vrouwelijk swivel met guide
Toepassing
Voor algemene hoge druk toepassingen.
