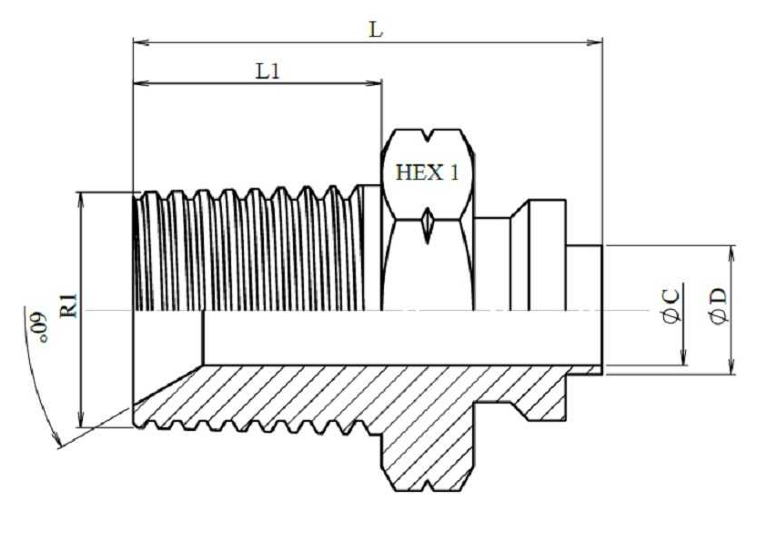

| Maat | R1 | L | L1 | HEX 1 | ØC | ØD | |
|---|---|---|---|---|---|---|---|
| 1/4" | ¼" NPT | 27 | 13,5 | 17 | 4 | 5,8 | |
| 3/8" | ⅜" NPT | 28,5 | 14 | 19 | 8 | 9,8 | |
| 1/2" | ½" NPT | 32,5 | 18,5 | 22 | 10 | 12 | |
| 3/4" | ¾" NPT | 35 | 20 | 30 | 15 | 19 | |
| 1" | 1" NPT | 42 | 24 | 36 | 22 | 24,5 | |
| 1 1/4" | 1¼" NPT | 47 | 26 | 46 | 28,5 | 32 | |
| 1 1/2" | 1½" NPT | 48 | 27 | 50 | 32 | 39 | |
| 2" | 2" NPT | 51,5 | 28 | 65 | 45 | 50 |
Productcatalogus

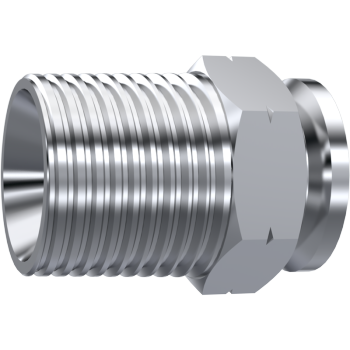

Lasfitting 60° NPT mannelijk met guide
Toepassing
Voor algemene hoge druk toepassingen.
